How to submit your custom mat dimensions to our design team

To design Gold Heat mats, The Gold Heat engineering team needs a full scale (model space) floor plan with the heat mat border drawn on a dedicated drawing layer. We need this information to do the specifics of the wire.

  1. A dimensioned layout of your floorplan. AutoCAD files are preferred in .dwg or .dfx file types are preferred.
  2. Please show the border of the heated area in a dedicated drawing layer.
  3. Don’t forget to show cabinets, seats, appliances and fixtures.
  4. We are also able to use .pdf or .jpg scaled images with control dimensions
  5. Identify square footage of the heated border area for quotation.
  6. Mark cold lead location, direction and length needed
  7. Standard cold lead lengths are 6’, 10’, 12′, 16′ and 20’.  Other sizes available.
  8. Submit a .dwg or .dxf CAD file to our design engineers at design@goldheat.com.
    A .pdf file or or fax may be attached to the PO for reference.

Allow 72 hours for the review and approval of your floor plan drawing.

After the detailed design is complete Gold Heat will send you a check print for your approval. Gold Heat’s custom manufacturing team begins manufacturing after you approve the mat’s check print.

A peson demonstrating how to craft a floorplan for gold heat
A man installing radiant heat to explain how to craft a floorplan for gold heat
A man working on radiant heating trying to demonstrate how to craft a floorplan for gold heat

Residential Room Drawing Requirements

A simple floor plan used to explain how to craft a floorplan for gold heat

Submit a drawing with floorplan measurements and cold lead locations with cold lead length.

A floor plan used to explain how to craft a floorplan for gold heat

In return you receive a check print, like this, for your approval.

Green = heating wire
Red = 2” mat border

Tiny House Drawing Requirements

An RV floorplan used to explain how to craft a floorplan for gold heat

Submit a drawing calling out your heated border area, and location and length of cold lead.

A highlighted floor plan used to explain how to craft a floorplan for gold heat

You will receive a check print, like this, for your approval.

Green = heating wire
Red = 2” mat border

RV / Motorcoach Drawing Requirements

Gold Heat RV Installation radiant floor heat mats used to explain how to craft a floorplan for gold heat

Submit a drawing calling out your heated border area, and location and length of cold lead.

Gold Heat RV Installation radiant floor heat mats motorcoach used to explain how to craft a floorplan for gold heat

You will receive a check print, like this, for your approval.

Green = heating wire
Red = 2” mat border

EVERYTHING YOU NEED FOR SUCCESSFUL INSTALLATION AND OPERATION

Let’s Get Ready-to-Install

Not only is Gold Heat committed to providing you with a seamless ordering process, but we also offer an optional complete installation kit for your product so everything you will need to get your product functioning is included in the box.

Wiring for radiant heating used to explain how to craft a floorplan for gold heat
Your Gold Heat mats come installation and cold-lead ready.
A device used in a radiant flooring system

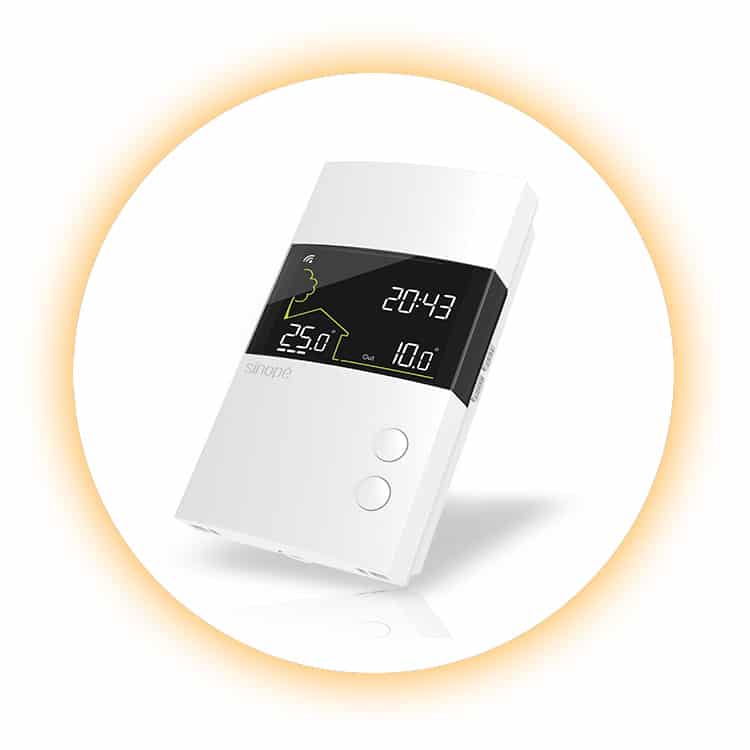

The Sinope’ thermostat provides sophisticated controls of your environment with futuristic capabilities.
